Framola™ Pergola & Fence Post Base Bracket (5 Sizes Available)

Framola™ Pergola & Fence Post Base Bracket (5 Sizes Available)

Build strong and secure outdoor structures with the Framola Post Base Bracket. Designed as part of the Framola system, this bracket makes it simple to install upright timber posts for pergolas, fencing, car ports, and other garden builds. It provides a solid connection between your timber and the ground, helping create a stable and long-lasting structure.

The design allows you to fix the bracket directly to concrete, brick, or other solid surfaces using masonry bolts. Once secured, the timber post slots neatly into the bracket and can be fixed in place using wood screws through the side holes. This creates a firm hold that keeps posts upright and aligned. The staggered hole pattern helps prevent screws from clashing inside the timber, making installation smoother and more reliable.

Manufactured from heavy-duty British galvanised steel, the bracket is built to withstand outdoor conditions. The textured black powder-coated finish gives a clean, professional look while adding an extra layer of durability. With five size options available, you can select the correct fit for your timber, from 2 inch up to 6 inch posts.

Optional extras such as installation kits and post base covers are also available to make fitting easier and improve the final appearance. Designed and manufactured in the UK, this bracket offers a dependable solution for building strong outdoor structures.

Getting The Right Post Base:

To get the right post base for the size of wood you are using, please select from the options at the top. This will allow you to select between options for 2", 3", 4", 5" and 6" timber.

All the screw holes on the sides of the post base bracket are 7.5mm. This means that our Framola Timber Pergola Installation screws are a great choice for securing the wood to the bracket.

To secure these Post Base Brackets to the ground or to a wall, we recommend these Hex-Head Masonry Bolts. The hole sizes on the base are 10mm in diameter. (There are additional holes on the 3inch variant to allow you to use smaller bolts). Specifically we recommend the 6.0 x 50mm size. These bolts are specifically designed for concrete, brick and other hard materials.

To make life easier for you, we also offer an installation kit which provides a drill bit, a driver bit and a selection of bolts to secure it to the ground.

Key Features:

• Secure post installation - The Post Base Bracket creates a strong fixing point for pergolas, fencing, and more

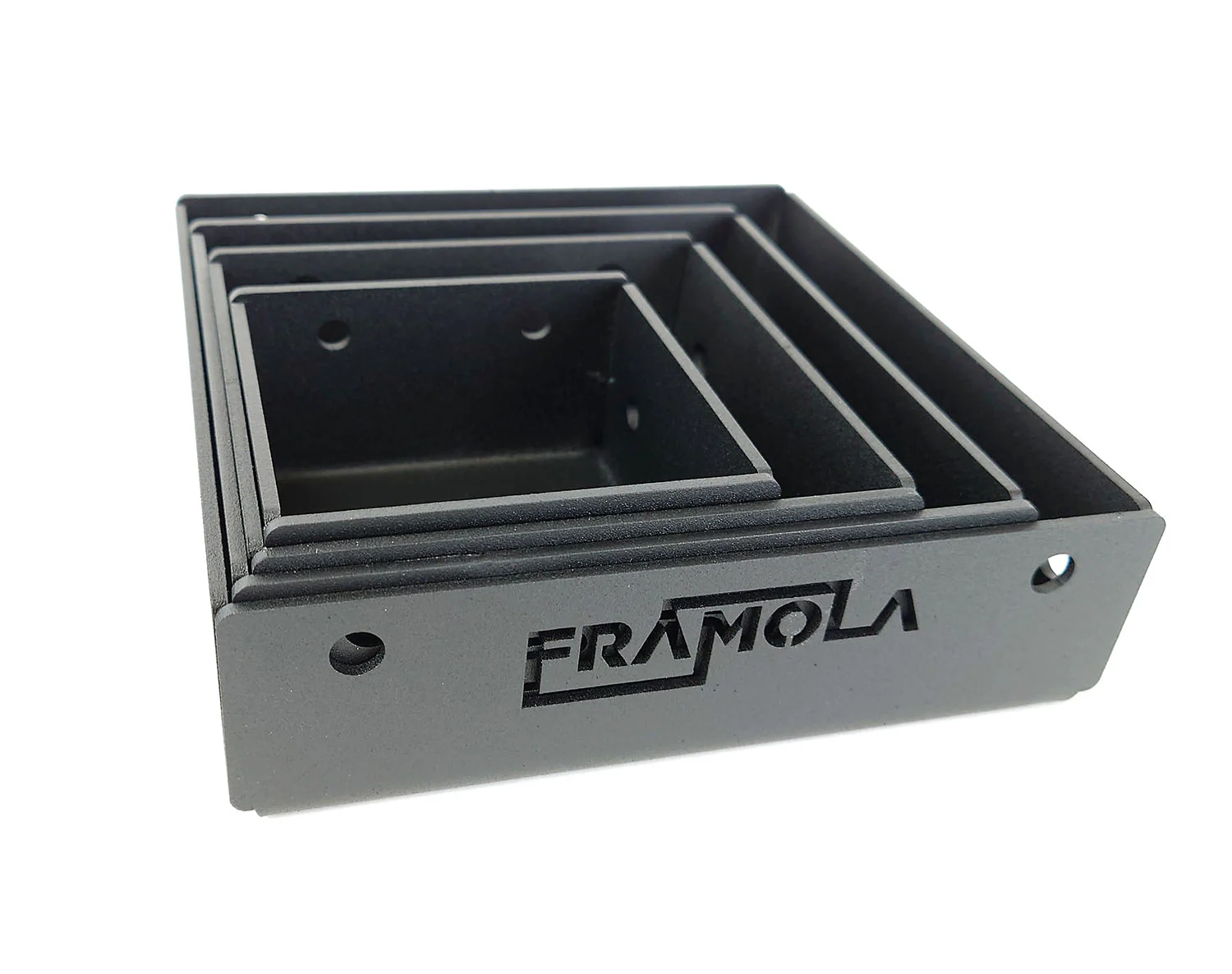

• Multiple size options - Available for 2 inch, 3 inch, 4 inch, 5 inch, and 6 inch timber
• Heavy-duty galvanised steel - Built for strength and long-term outdoor use
• Powder-coated finish - Textured black coating for durability and a clean look
• Staggered fixing holes - Prevents screws from clashing inside the timber
• 7.5mm side holes - Suitable for timber fixing screws
• 10mm base holes - Designed for secure fixing into concrete or brick
• Flexible installation - Can be mounted to floors, walls, or solid bases
• Optional accessories available - Covers and install kits for easier fitting
• UK designed and manufactured - Built using British steel

Dimensions

Product	Width	Internal Width	Length	Internal Length	Height
6inch / 150mm	155mm	150mm	155mm	150mm	45mm
5inch / 125mm	130mm	125mm	134mm	125mm	45mm
4inch / 100mm	105mm	100mm	105mm	100mm	45mm
3inch / 75mm	80mm	75mm	80mm	75mm	45mm
2inch / 50mm	55mm	50mm	55mm	50mm	27mm



Going for a custom colour?

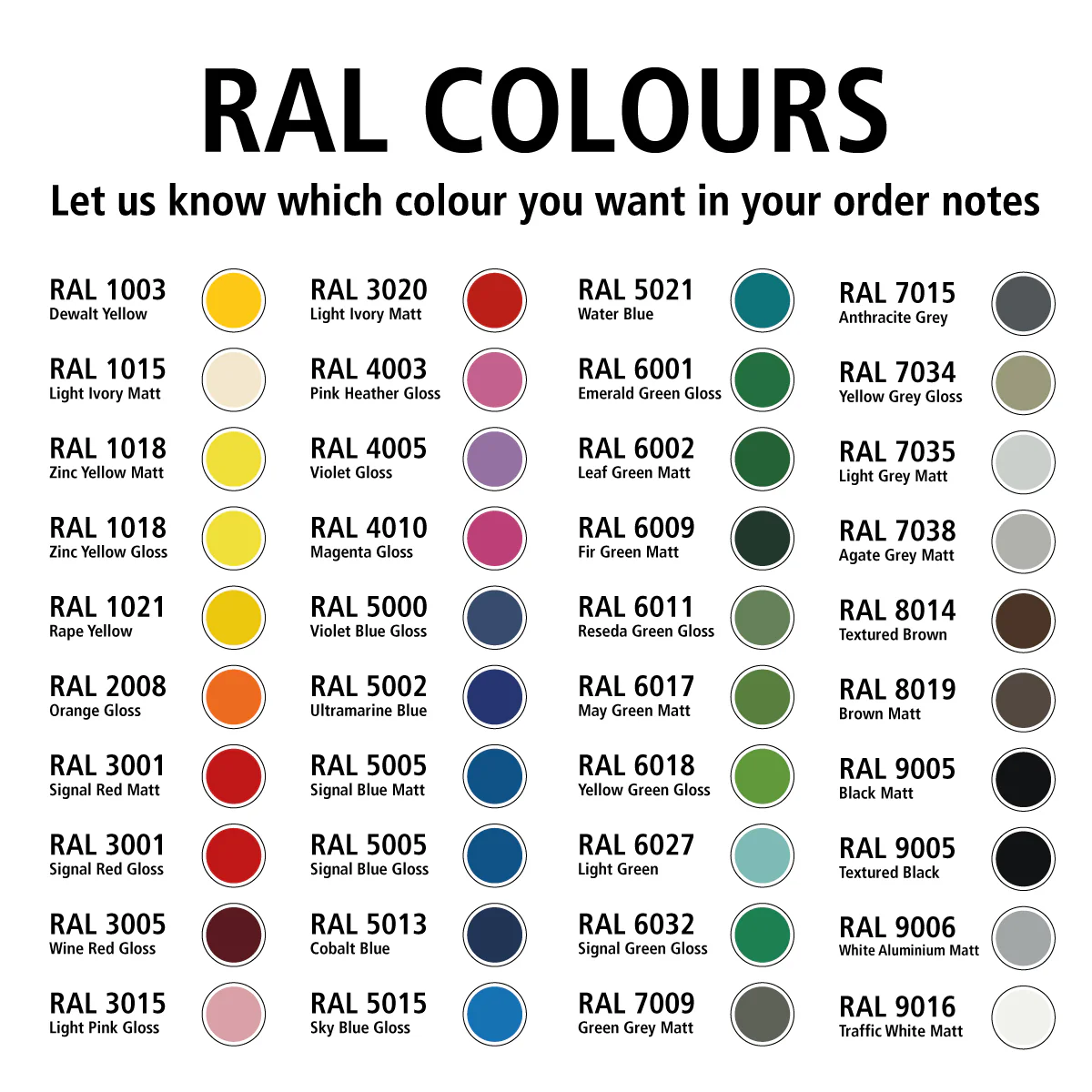

Choose from our selection of RAL colours for a totally custom post base bracket, match your home or garden. Please make sure to leave us a note in your order comments to state which colour you would like, we have included a chart in the product images to help you select.

Add a Post Base Cover?

The Post Base Bracket Cover is an additional product which can be placed over the Post Base during installation to cover the screws for a clean, aesthetic finish.

During the installation of the post base, you should place the cover over top of the base before slotting the wood in, as doing it retroactively would require the pergola/fence to be disassembled. Once the cover is placed over the post base and the wood is slotted in, you need to lift the cover to screw the wood to the post base, and then slot it back over gently. Please watch our video to see the installation process.

Find out more about Post Base Covers here

Please note:

• No screws or fixings are provided with the post base bracket unless added at the checkout screen.
